Page 5 - MariCare

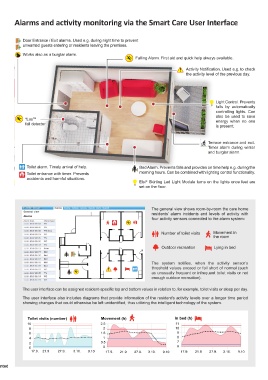

Alarms and activity monitoring via the Smart Care User Interface

Door Entrance / Exit alarms. Used e.g. during night time to prevent
unwanted guests entering or residents leaving the premises.

Works also as a burglar alarm. Falling Alarm. First aid and quick help always available.

Activity Notification. Used e.g. to check
the activity level of the previous day.

eLsaTM Light Control. Prevents
fall detector falls by automatically
controlling lights. Can
Toilet alarm. Timely arrival of help. also be used to save
Toilet entrance with timer. Prevents energy when no one
accidents and harmful situations. is present.

Terrace entrance and exit.
Timer alarm during winter
and burglar alarm.

Bed Alarm. Prevents falls and provides on time help e.g. during the
morning hours. Can be combined with lighting control functionality.

Elsi® Skirting Led Light Module turns on the lights once feet are
set on the floor.

General view The general view shows room-by-room the care home
Alarms residents’ alarm incidents and levels of activity with
four activity sensors connected to the alarm system:

Number of toilet visits Movement in
Outdoor recreation the room
Lying in bed

The system notifies, when the activity sensor’s
threshold values exceed or fall short of normal (such
as unusually frequent or infrequent toilet visits or not
enough outdoor recreation).

The user interface can be assigned resident-specific top and bottom values in relation to, for example, toilet visits or sleep per day.

The user interface also includes diagrams that provide information of the resident’s activity levels over a longer time period
showing changes that could otherwise be left unidentified, thus utilizing the intelligent technology of the system.

Toilet visits (number) Movement (h) In bed (h)

10 2.5 11
2 10
8
1.5 9
6 1 8
7
4 0.5 6
0
2 17.9. 21.9
17.9. 21.9
0 27.9. 3.10. 9.10 27.9. 3.10. 9.10 27.9. 3.10. 9.10
17.9. 21.9
